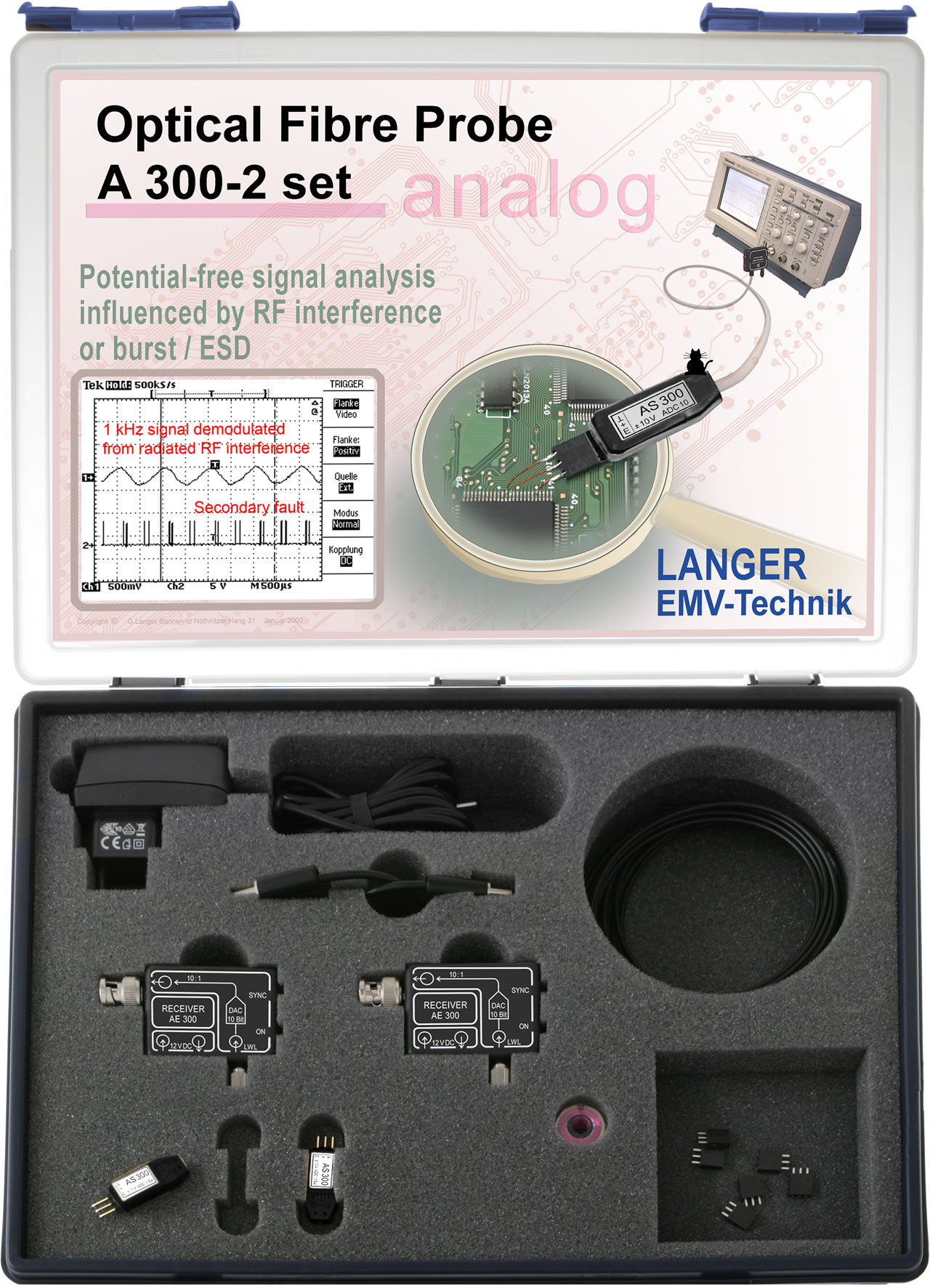

A300-2 set

Send enquiry Datasheet
  • A300-2 set

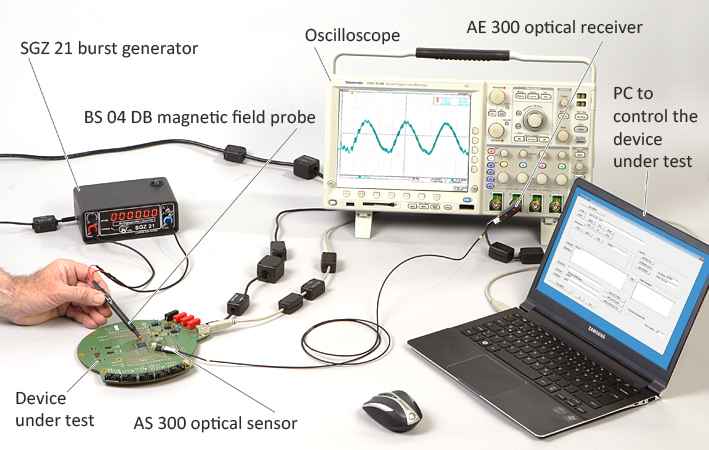

  • Application with A300 set
    Application with A300 set

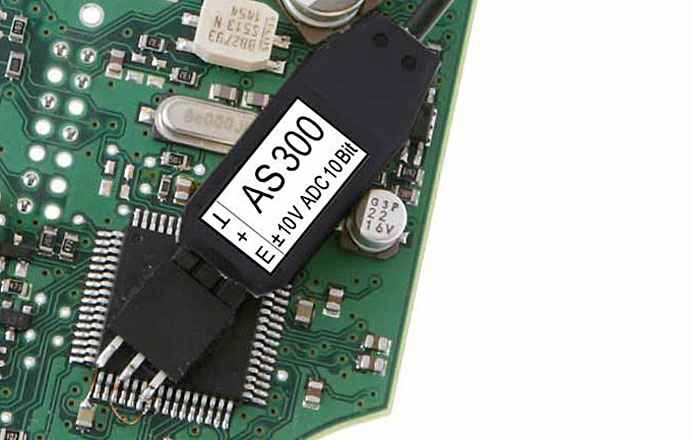

  • Application with optical sensor AS 300
    Application with optical sensor AS 300

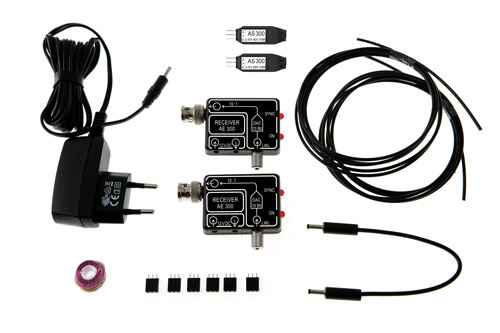

  • Scope of delivery A300-2 set
    Scope of delivery A300-2 set
A300-2 set Application with A300 set Application with optical sensor AS 300 Scope of delivery A300-2 set
  • A300-2 set
  • Application with A300 set
  • Application with optical sensor AS 300
  • Scope of delivery A300-2 set
Delivery content
Technical parameters
带宽 DC ... 5 MHz
采样率 12.5 Msps
分辨率 10 Bit

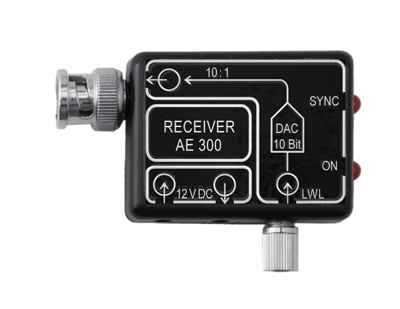

AE 300 光学接收器
带宽 DC ... 5 MHz
输出电压范围 ±1 V
光学输入: 光纤 Ø 2.2 mm
电源电压 12 V ... 16 V
电流输入 ≈ 90 mA
AS 300 光学传感器
带宽 DC ... 5 MHz
采样率 12.5 Msps
测量范围 ± 10 V
输入电阻 100 kΩ
抗辐射性 > 200 V/m
电源电压 4.5 V ... 16 V
电流输入 70 mA (4.5 V)
30 mA (16 V)
光线长度 1 m ... 20 m
Delivery content details
