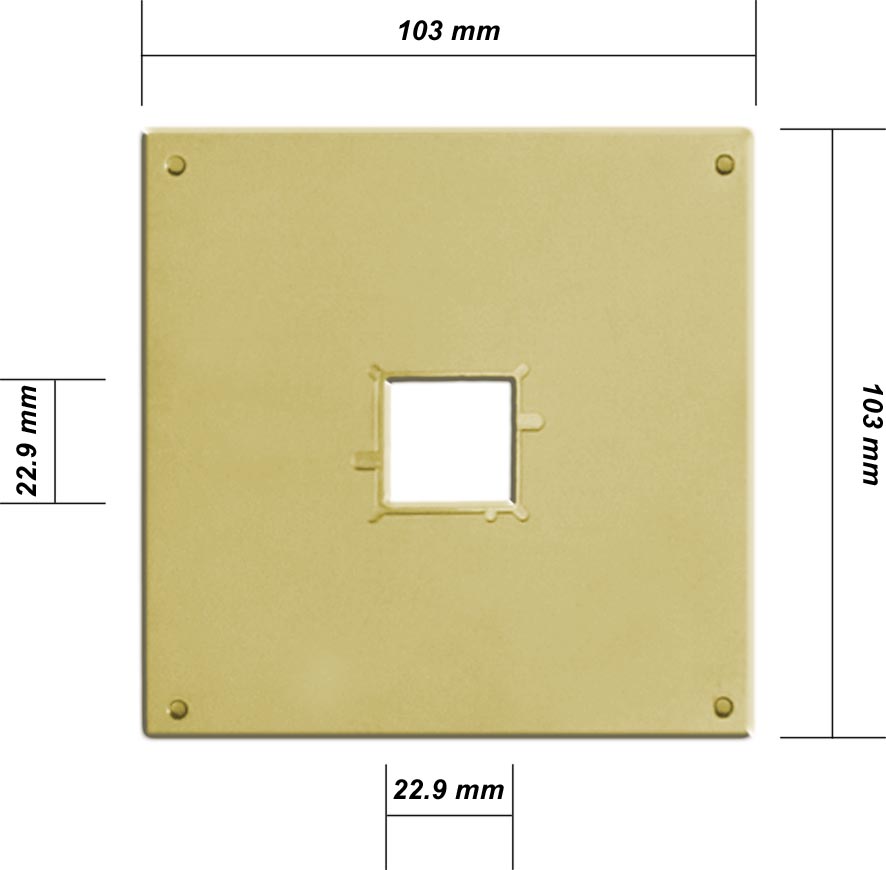

GNDA 01
接地适配器


Short description
接地适配器用于把受测集成电路接到接地板GND 25的(100x100)mm卡槽上。接地适配器在卡紧集成电路板时可调。按照集成电路的大小有四种接地适配器尺寸(GNDA01-04)可供选择。
Depending on the size of the recess, different pins are available to connect the connection board with the test board. Instead of the ground adapter, a (100 x 100) mm test board can be placed into the GND 25 ground plane.
