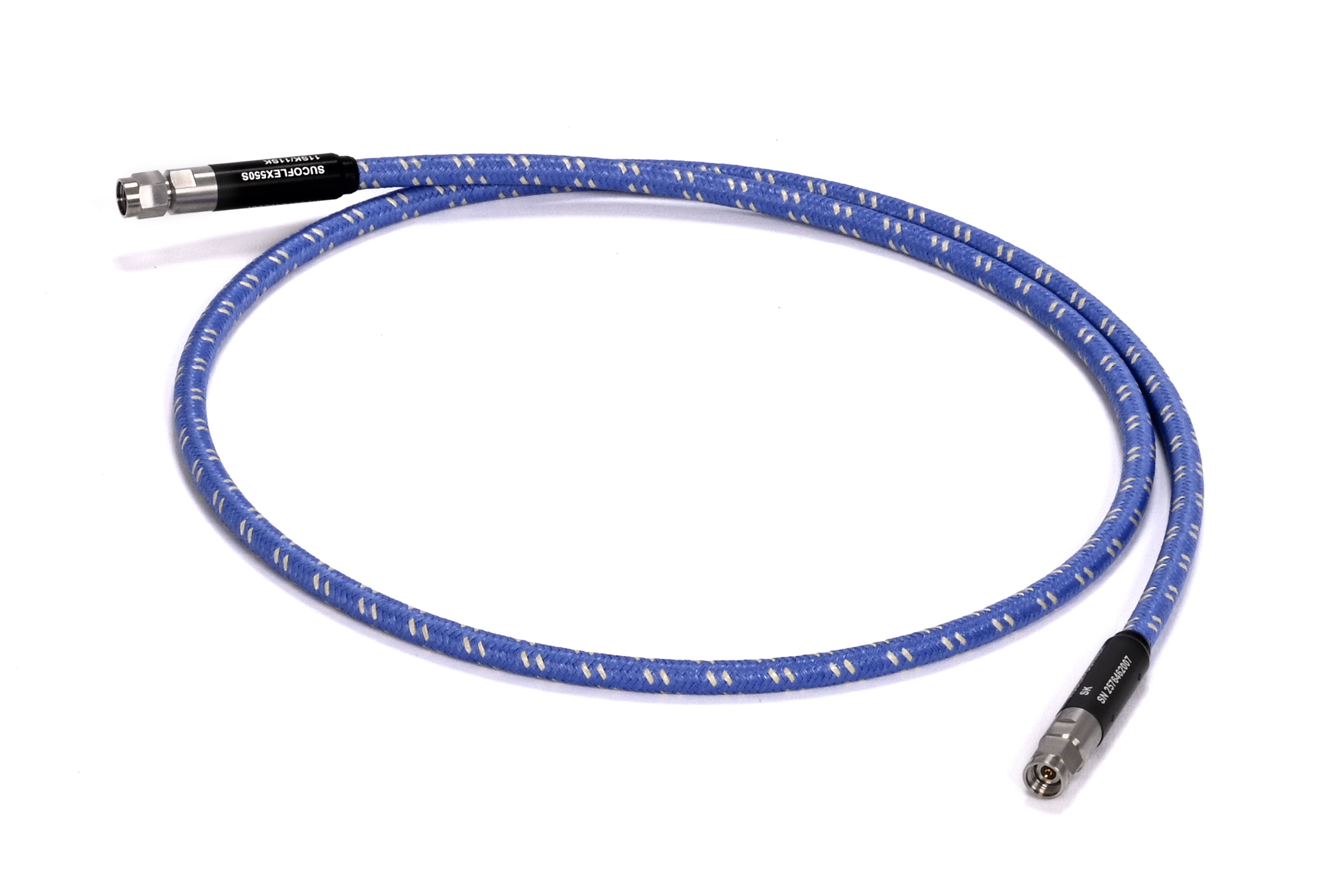

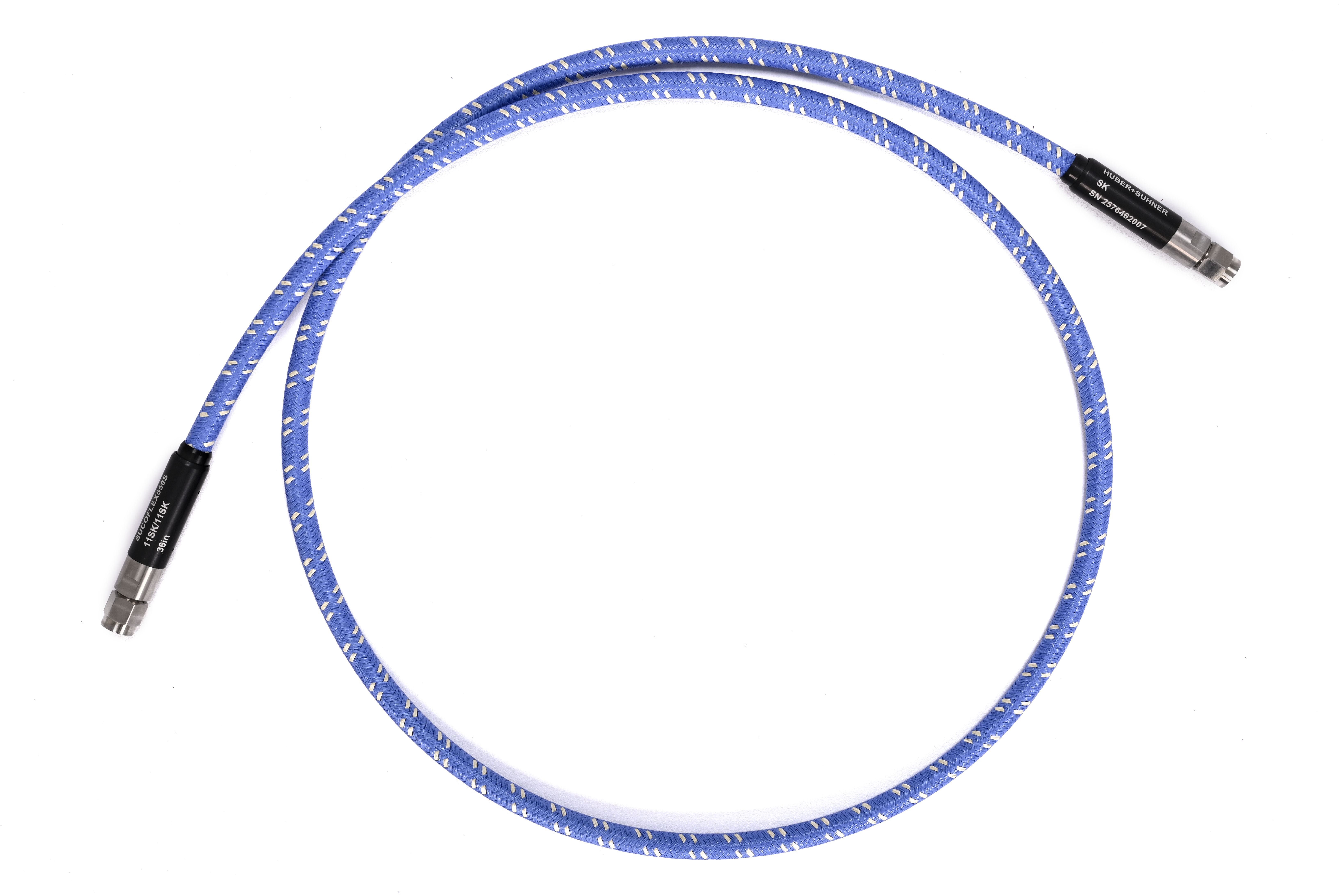

HR SF550S
Technical parameters
Mechanical Data | |
Frequency | 40 GHz |

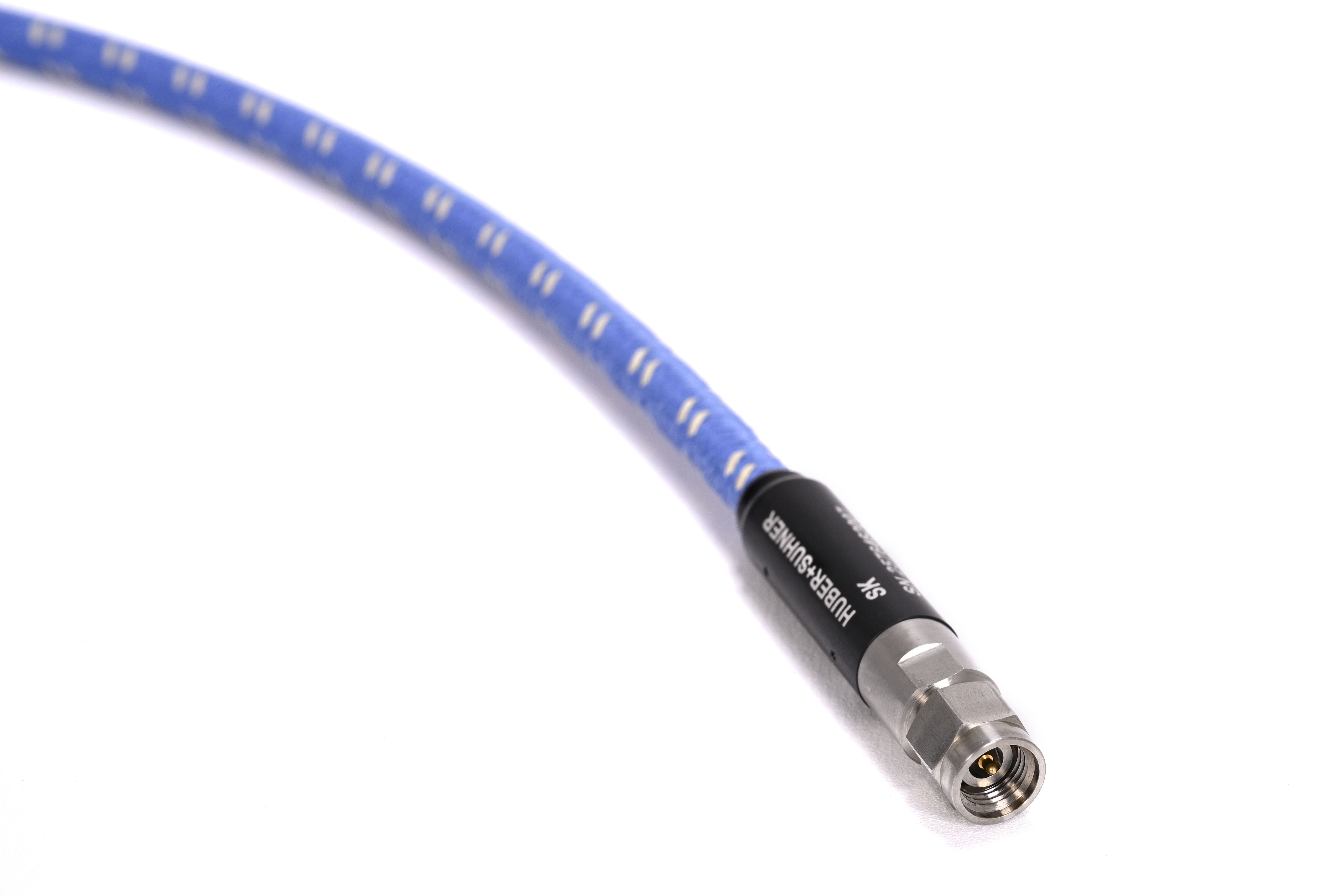

Connector | 2.92 mm (straight male) |
Diameter | 6.1 mm |
Dielectric | PTFE |
Length | 1 m |
Weight | 102 g |
Min. bending radius | 25.4 mm |
Typ. flex life (cycles) | > 100000 |
Environmental data | |
Temperature range | -55 to +125 °C |
Electrical data | |
Impedance | 50 Ω |
Velocity of signal propagation | 77 % |
Typ. return loss | 19 dB |
Min. return loss | 15 dB |
Typ. insertion loss | 3.41 dB |
Max. insertion loss | 3.72 dB |
