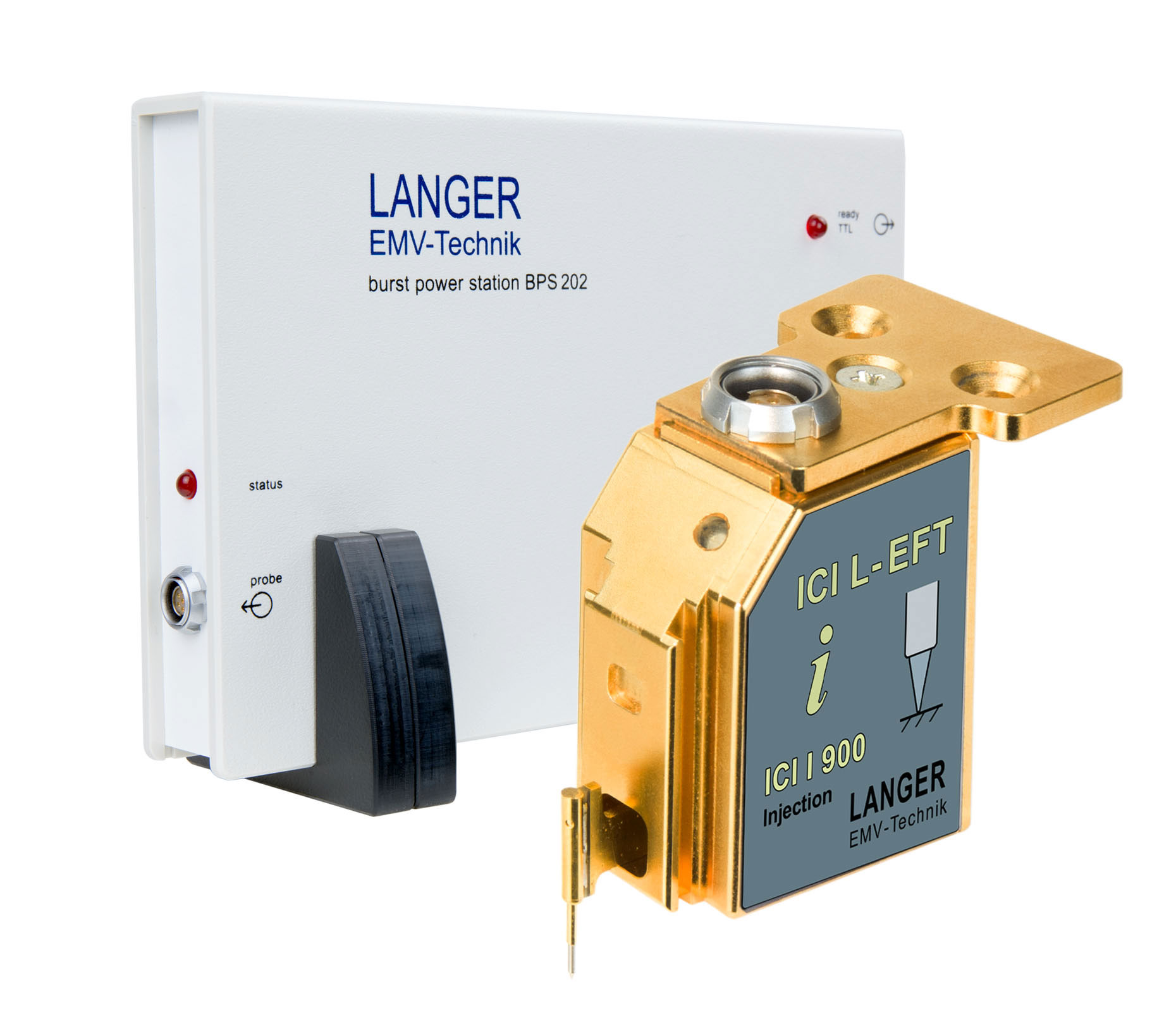

ICI I900 L-EFT set
-
-

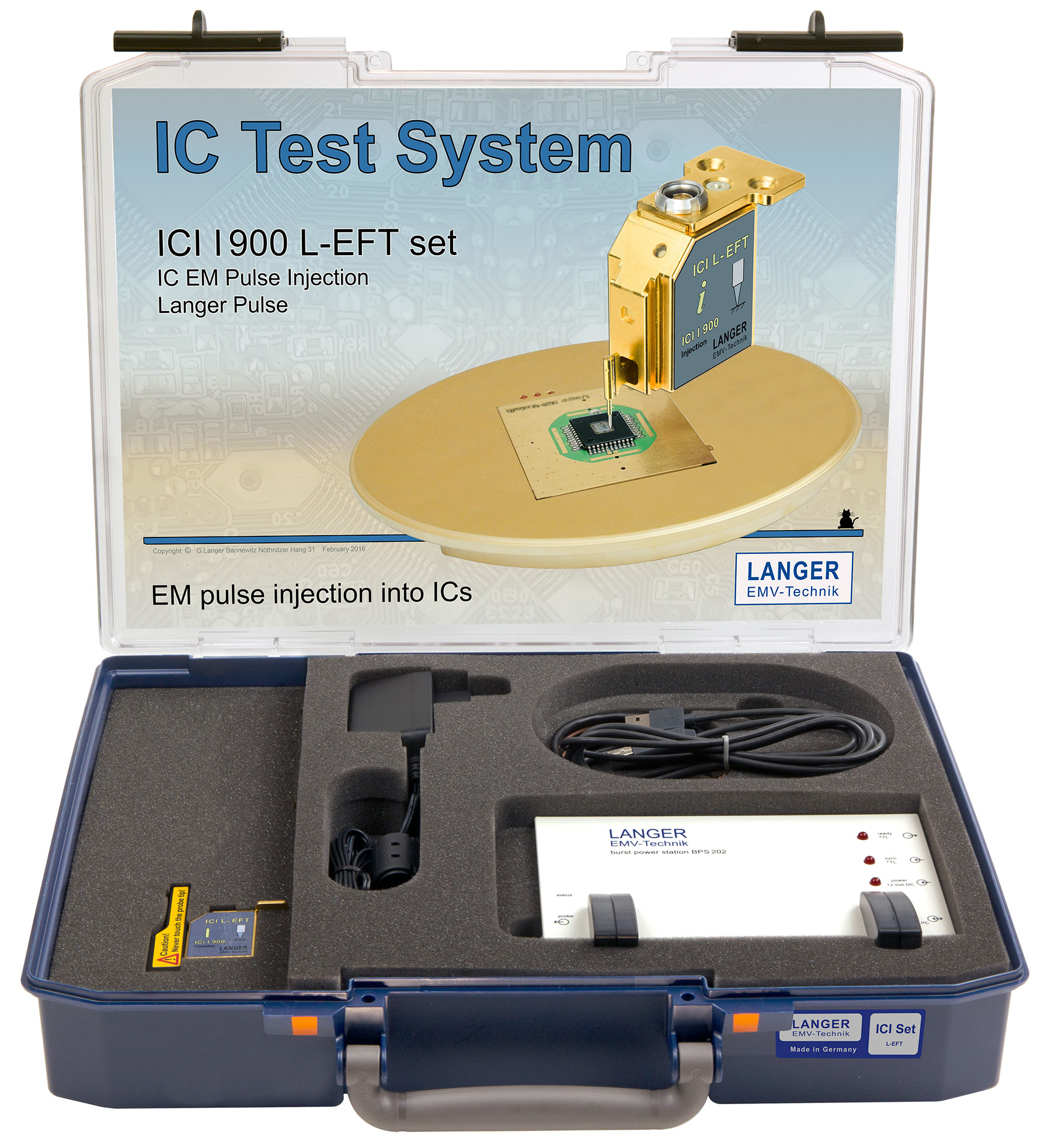

Contents of the case ICI I900 L-EFT-set -
Application of ICI I900 L-EFT Pulse Current Source -
Schematic set-up with mover -

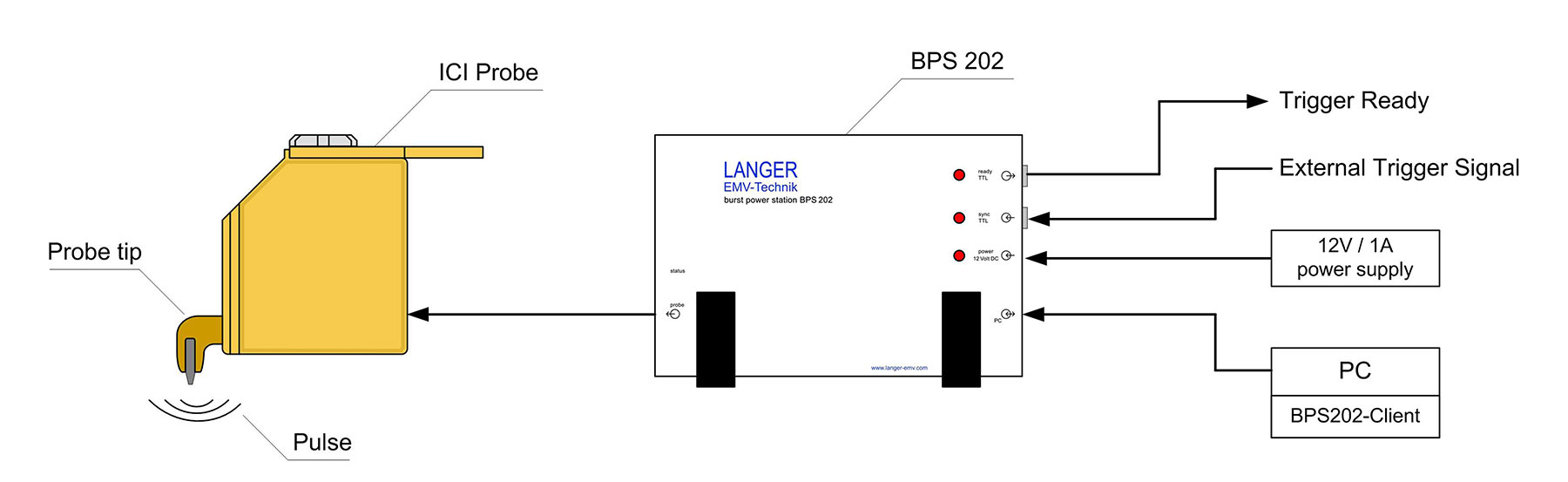

Schema of measurement set-up
![ICI I900 L-EFT set](/fileadmin/Bilder300/2023.08.08-ICI I900-forward body-biased-injection-probe_web.jpg?v=1725087604442)
![Contents of the case ICI I900 L-EFT-set](/fileadmin/Bilder300/2023.07.20-ICI-I900-L-EFT-set_Case_SAM_0020.jpg?v=1725087606944)
![Application of ICI I900 L-EFT Pulse Current Source](/fileadmin/Bilder300/2017.08.25 ICI I900 L-EFT forward body biased injection above IC open die.jpg?v=1725087606944)
![Schematic set-up with mover](/fileadmin/2023.07.24-ICI L-EFT set_Set-up schematic with mover.jpg?v=1725087606944)
![Schema of measurement set-up](/fileadmin/2023.07.24-ICI-schematic_in general.jpg?v=1725087606944)
Delivery content
- 1x ICI I900 L-EFT, Pulse Current Source (FBBI)
- 1x BPS 202, 猝发电站 SMA
- 1x BPS 202-Client, SMA
- 1x NT Ex EU
- 1x ICI 01 L-EFT acc
- 1x ICI case
- 1x ICI m
Technical parameters
脉冲参数 | |
上升时间 | < 2 ns |
重复频率 | 0.1 Hz - 20 kHz |
极性 (set by software) | + / - / alternating |
触发器脉冲延迟 (Bypass Modus - Delay Line) | |
min. 触发器脉冲延迟 (typ.) | 100 ns |
max. 触发器脉冲延迟 (typ.) | 450 ns |
max. Jitter (typ.) | ± 1 ns |
电源电压 | BPS 202 |
软件 | BPS 202-Client / DLL (32 Bit / 64 Bit) Win XP SP3 or higher |
Delivery content details
-
ICI I900 L-EFT
Pulse Current Source (FBBI)
The ICI I900 L-EFT pulse current source couples fast transient pulses into a test IC (Forward body biased injection). This source allows for side channel analysis or testing the immunity of individual areas of the IC.
-
BPS 202
猝发电站 SMA
BPS 201猝发电站充当高压电源和Langer EMV科技有限公司的脉冲探头的控制单元。 该控制单元通过USB接口与用户电脑相连,借助BPS201客户端实现控制功能。 通过BPS 201上的“sync”输入端可以将探头的干扰脉冲同步至工作中的集成电路。
-
BPS 202-Client
SMA
