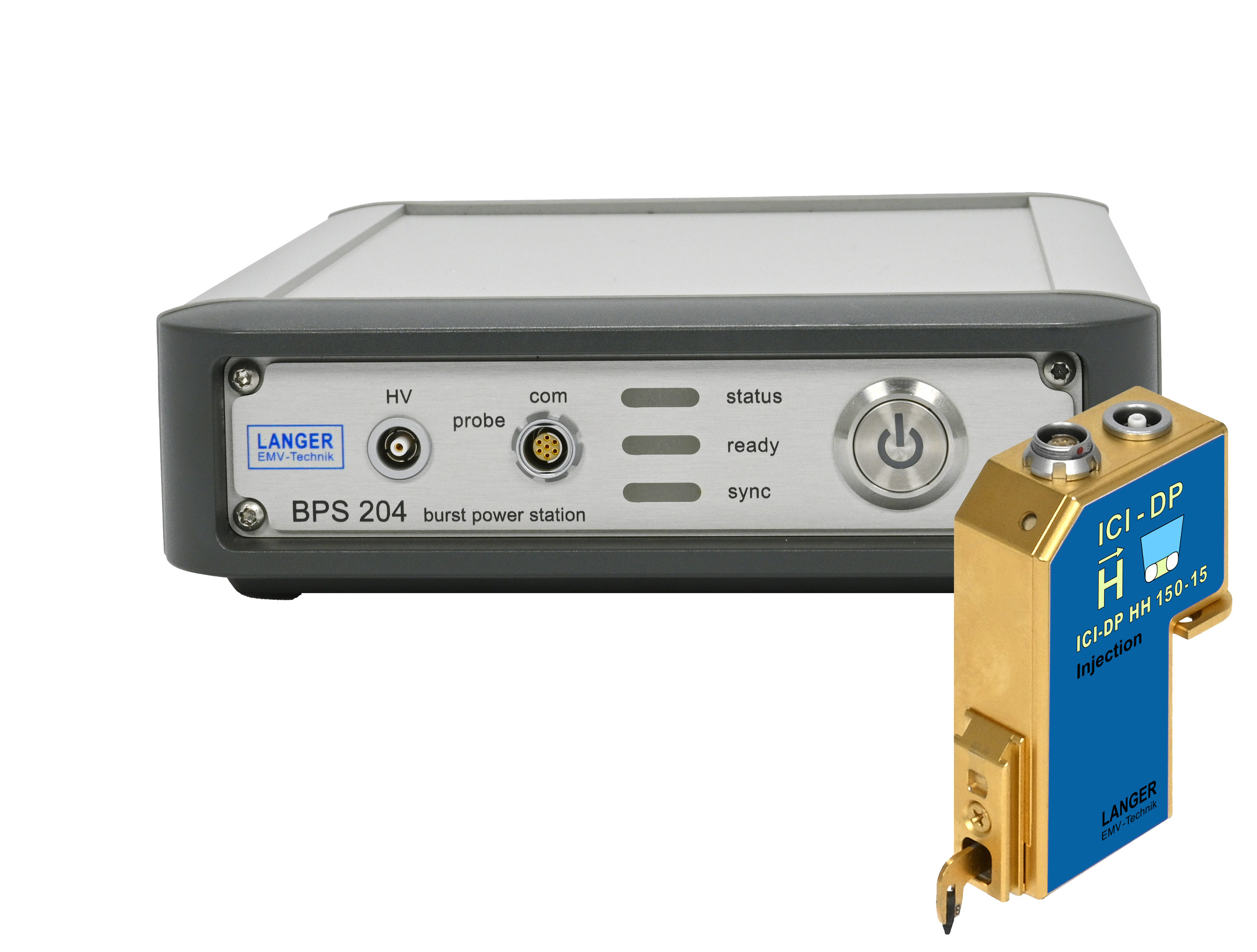

ICI-DP HH150-15 set

Send enquiry Datasheet
  • ICI-DP HH150-15 set
  • Contents of the case ICI-DP HH150-15 set

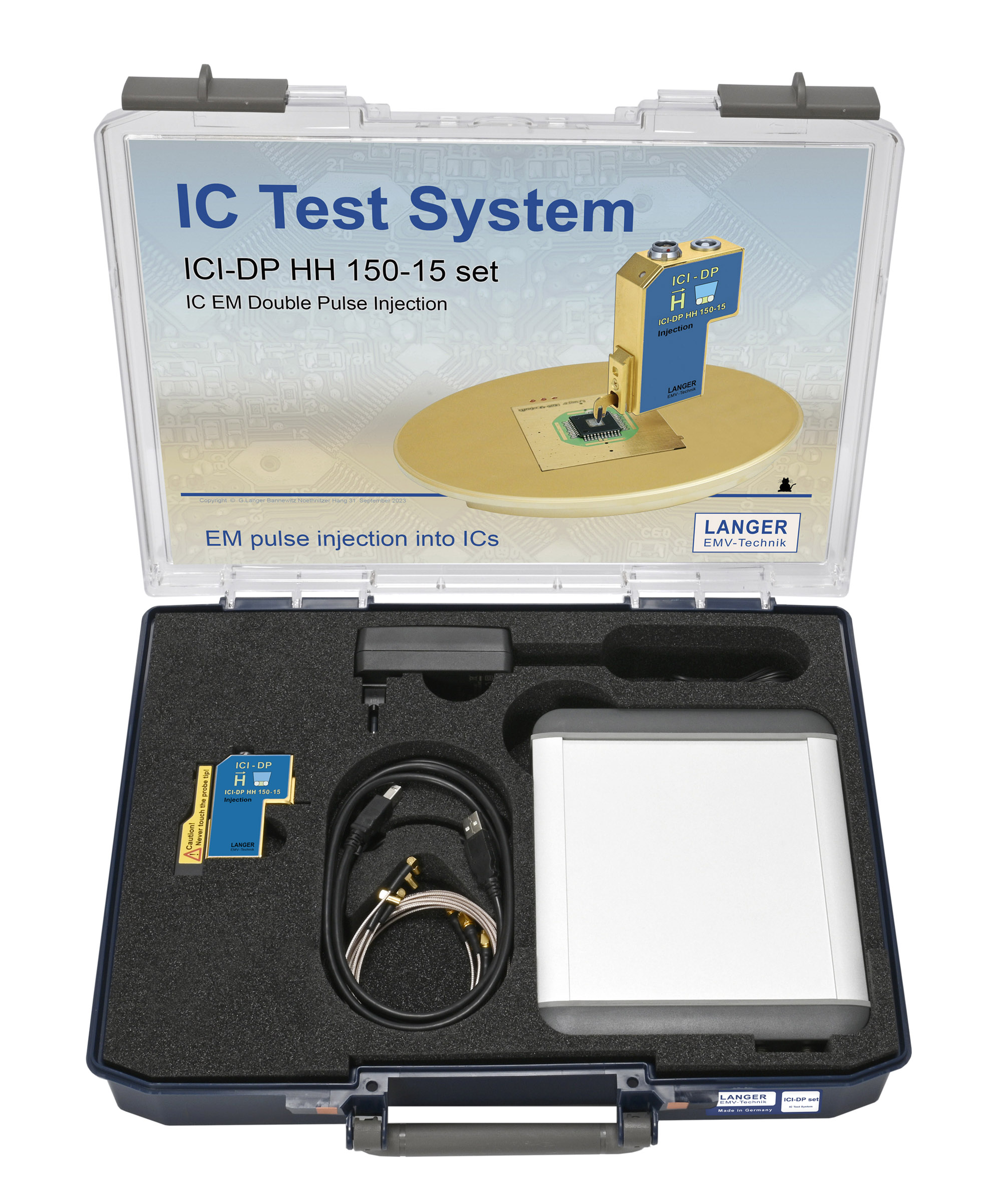

    Contents of the case ICI-DP HH150-15 set
  • Schematic set-up with mover
    Schematic set-up with mover
  • Fault injection measuring station with Langer IC scanner
    Fault injection measuring station with Langer IC scanner
  • Scope of delivery

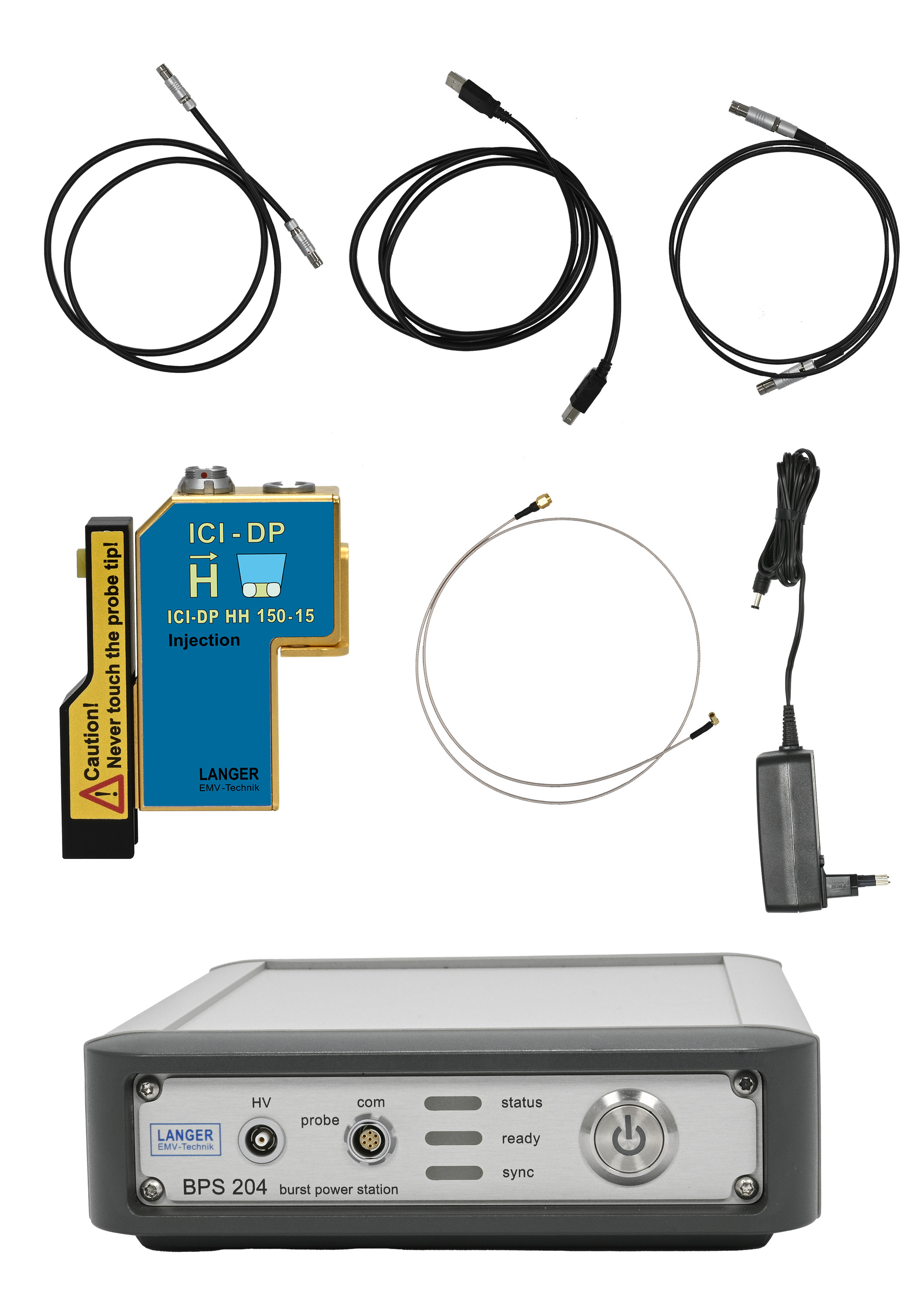

    Scope of delivery
ICI-DP HH150-15 set Contents of the case ICI-DP HH150-15 set Schematic set-up with mover Fault injection measuring station with Langer IC scanner Scope of delivery
  • ICI-DP HH150-15 set
  • Contents of the case ICI-DP HH150-15 set
  • Schematic set-up with mover
  • Fault injection measuring station with Langer IC scanner
  • Scope of delivery
Delivery content
  • 1x ICI-DP HH150-15
  • 1x BPS 204
  • 1x BPS 204-Client
  • 1x HV FI-FI mini 1 m, 高压电缆
  • 1x SK FI-FI 7P 1 m
  • 1x SMA-SSMB 1 m
  • 1x NT FRI EU 24V
  • 1x USB-AB
  • 1x ICI-DP case
  • 1x ICI-DP m
  • 1x BPS 204 m
  • 1x ICI-DP qg
Technical parameters
探头尺寸 Ø 150 µm
脉冲参数
上升时间 2 ns
25 ns (200 V)
极性 (set by software) +/-
电压 50 - 1000 V
max. Jitter (typ.) ± 1 ns
Min. trigger pulse delay 35 ns
