P1602
高频磁场探头
Short description

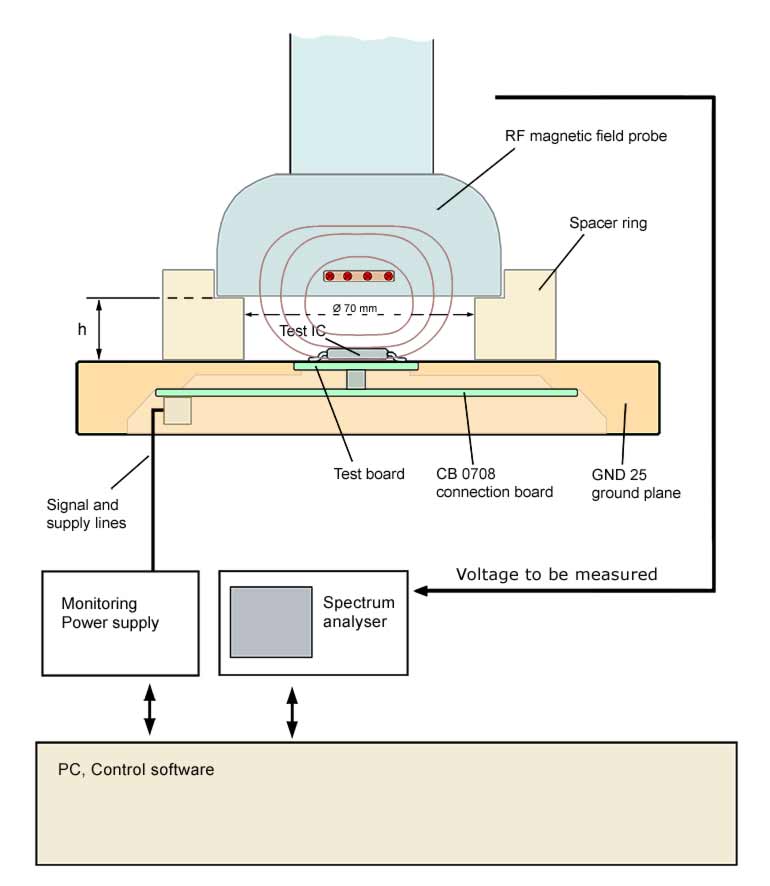

P1602型高频磁场探头用于测量从一个集成电路耦合出的磁场,其频率在3GHz 以内。这些磁场在探头内的导体上感应出电压,相连的频谱分析仪会测量这些电压。
The RF magnetic field probe has a 50 ohm RF measuring output. In order to locate the magnetic field current in different orientations the RF magnetic field probe is 360° rotatable above the IC. With the help of a distance ring (3 or 10 mm) the RF magnetic field probe is positioned in a defined distance above the IC.
