PA 2522 set
Preamplifier 10 MHz up to 22 GHz

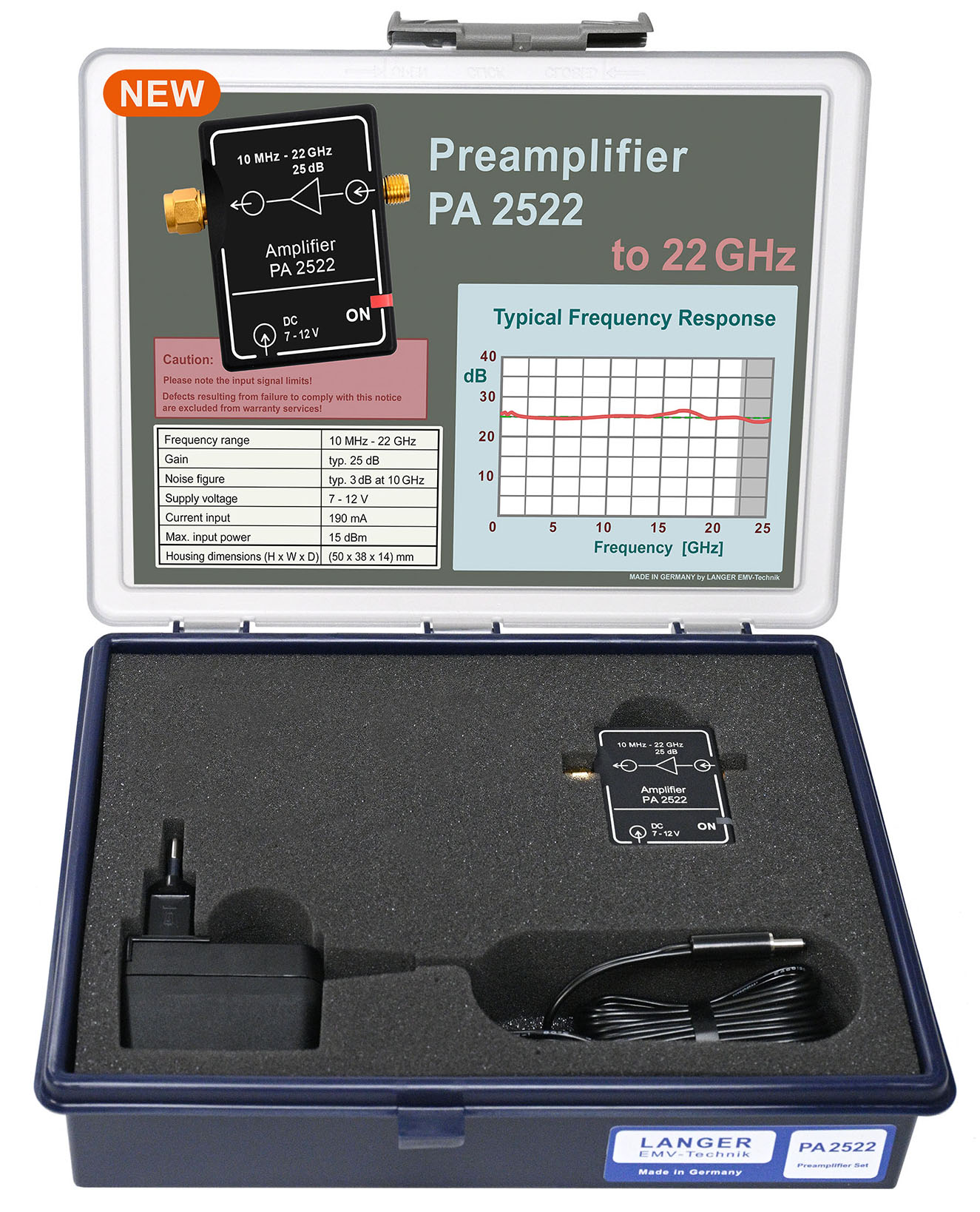

![PA 2522 set, Preamplifier 10 MHz up to 22 GHz](/fileadmin/Bilder300/2022.06.24-PA 2522_Case_NEW_en.jpg?v=1725087604442)

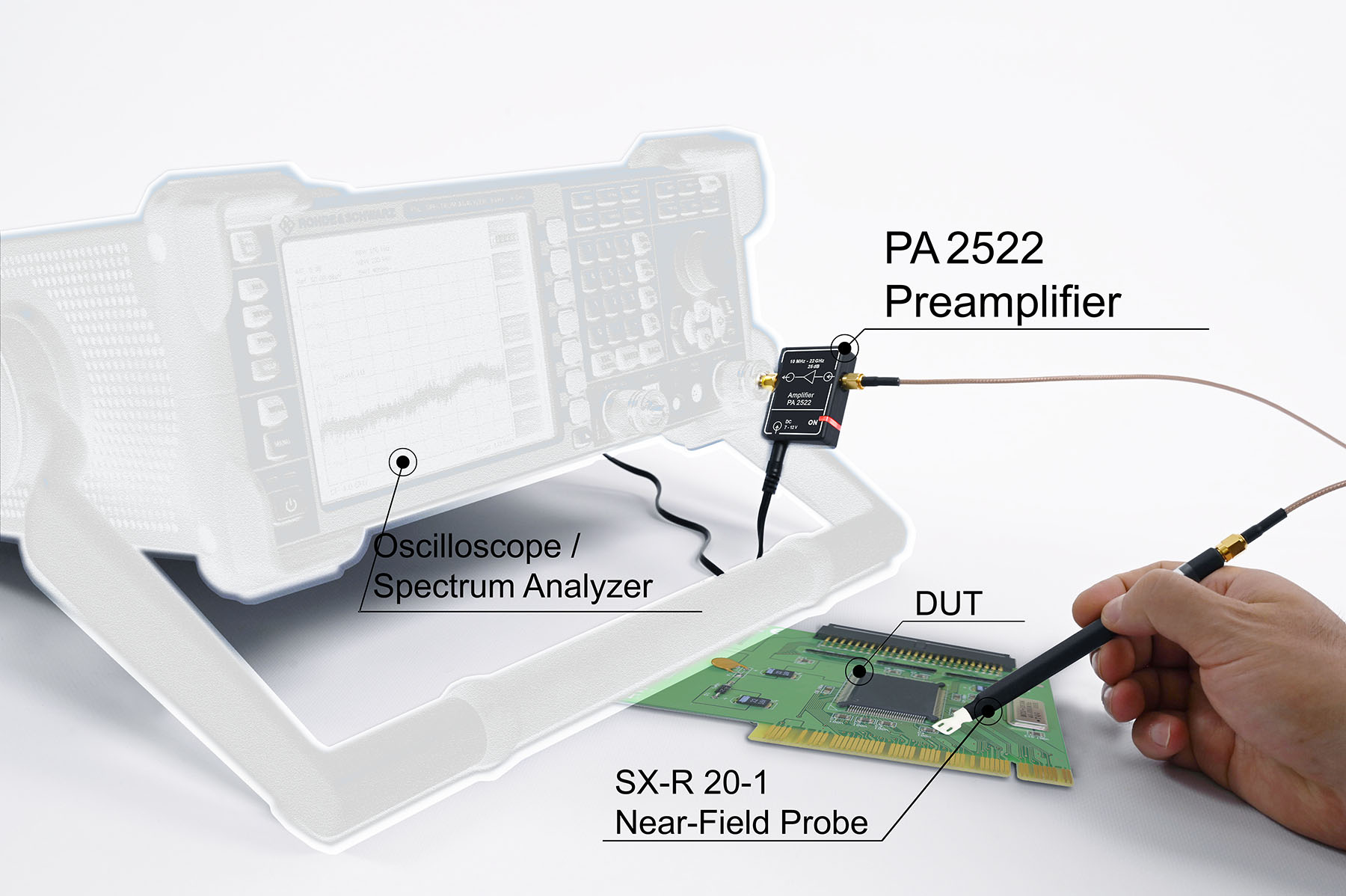

![Measurement set-up with PA 2522](/fileadmin/Bilder300/2022.03.17 Messaufbau mit PA 2522 am R&S-Speck_DSC8477_en.jpg?v=1725087606944)
![Scope of Delivery](/fileadmin/Bilder300/2022.03.17 LV_PA 2522_DSC8418.jpg?v=1725087606944)
Short description
The PA 2522 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 2522 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 2522 are SMA connectors.

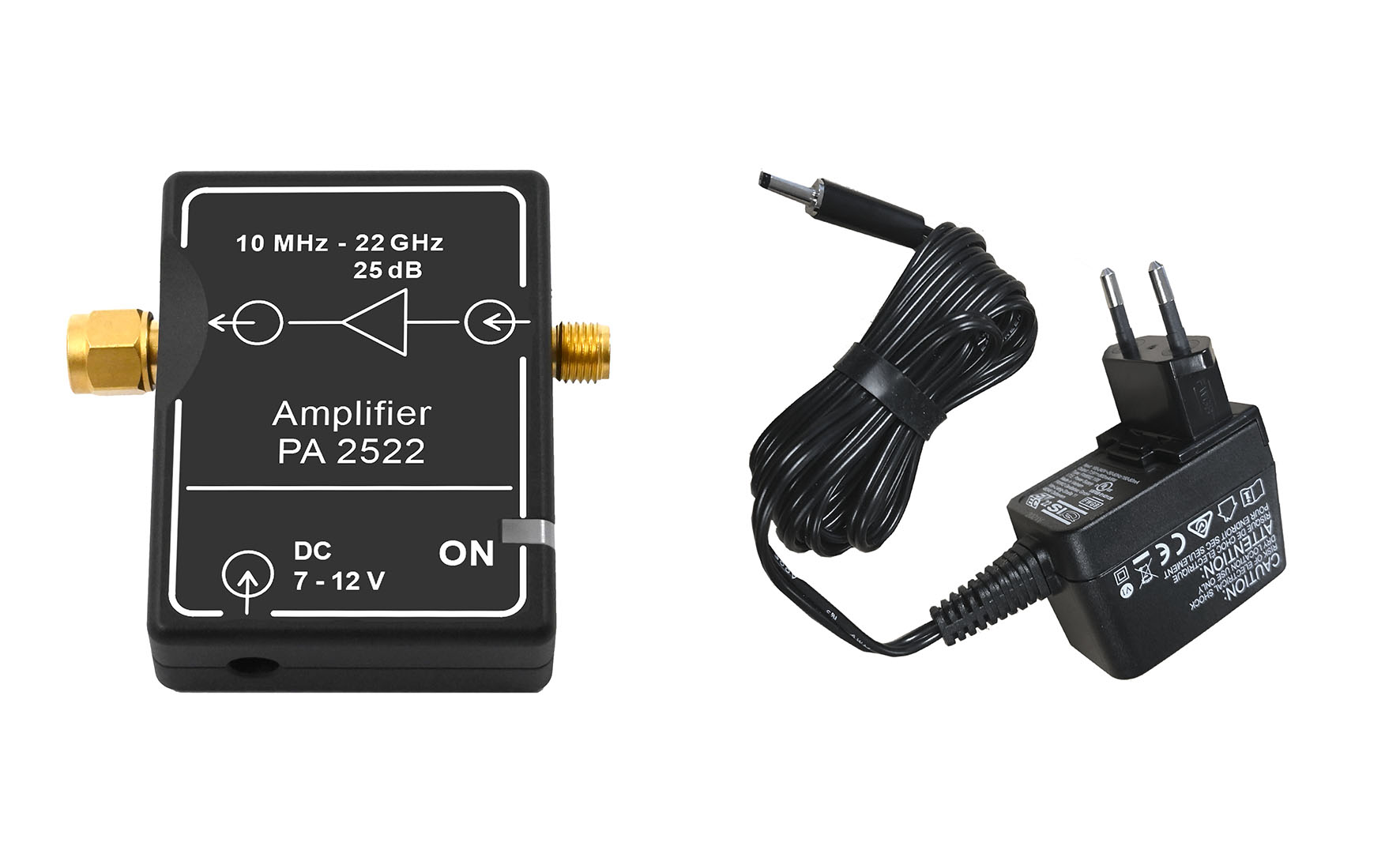

Scope of delivery
- 1x PA 2522, Preamplifier 10 MHz up to 22 GHz
- 1x NT FRI EU, Power Supply Unit
- 1x Case 5, System Case Near-Field Probes
Recommended products
Technical parameters
Frequency range | 10 MHz - 22 GHz |
Gain | 25 dB |
Weight | 400 g |
